2025 Ford F-150 Towing Capacity, Packages & Specs

As one of the most durable and versatile full-size pickup trucks sold today, the Ford F-150 towing capacity is one of the key reasons why this vehicle continues to dominate the market year after year. As a light-duty pickup, the F-150 reaches a staggering 13,500 pounds¹ of towing capacity, allowing drivers to haul heavy loads, trailers, and campers with ease.​​

But how can you configure your next F-150 to tow what you need? The team at Tom Wood Ford has put together a 2025 Ford F-150 towing and payload guide, giving you all the information you need to build your ideal truck.

2025 Ford F-150 Tow Capacity by Configuration

The 2025 Ford F-150 offers exceptional towing capabilities across its wide range of configurations, ensuring there's a setup to meet every driver's specific needs. Customize your level of performance with six engine options, three cab sizes, and two drivetrain choices, which we go into more detail below.

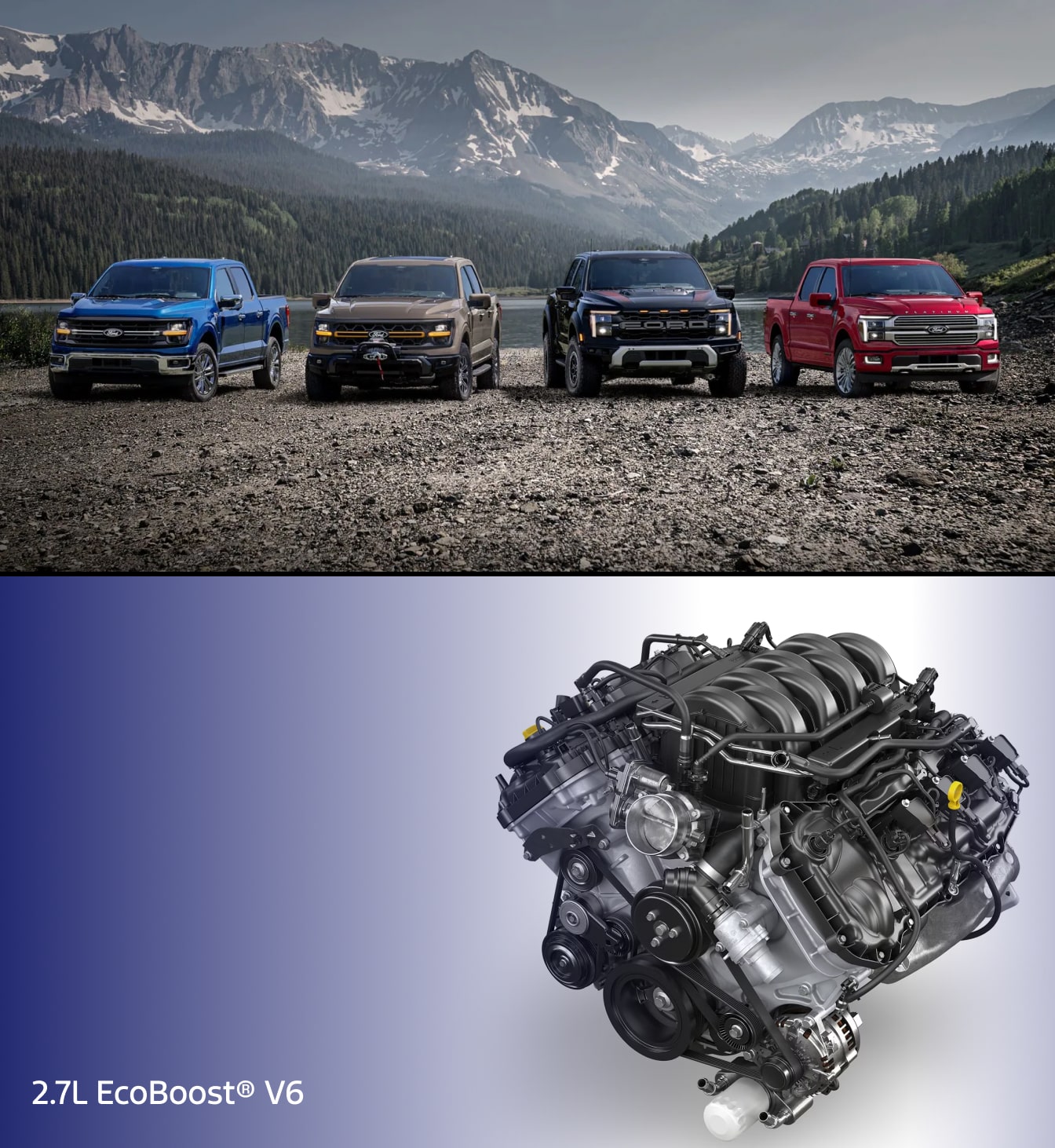

2.7-Liter EcoBoost V-6

With 400 pound-feet of torque, this great standard engine bestows the following maximum 2025 Ford F-150 towing capacity ratings:

Regular Cab

• 6.5-foot box, 4x2: N/A
• 6.5-foot box, 4x4: N/A
• 8-foot box, 4x2: 8,400 pounds¹
• 8-foot box, 4x4: 8,200 pounds¹

SuperCab

• 6.5-foot box, 4x2: 8,200 pounds¹
• 6.5-foot box, 4x4: 8,000 pounds¹

SuperCrew

• 5.5-foot box, 4x2: 8,200 pounds¹
• 5.5-foot box, 4x4: 8,000 pounds¹

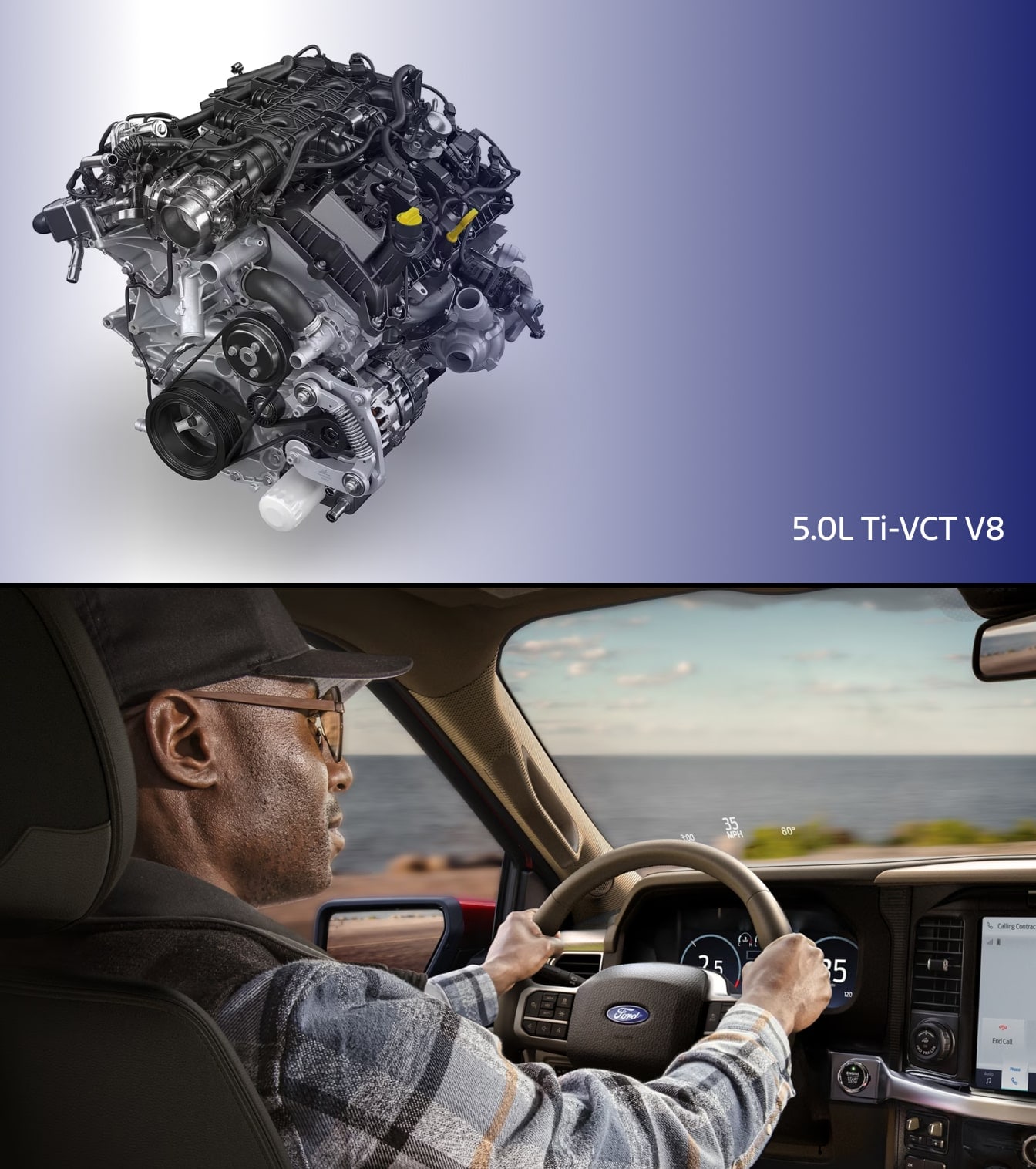

5.0-Liter Ti-VCT V-8

This classic V-8 engine grants the F-150 with 410 pound-feet of torque. The resulting Ford F-150 towing capacity ratings are:

Regular Cab

• 6.5-foot box, 4x2: 9,000 pounds¹
• 6.5-foot box, 4x4: 9,400 pounds¹
• 8-foot box, 4x2: 10,200 pounds¹
• 8-foot box, 4x4: 10,400 pounds¹

SuperCab

• 6.5-foot box, 4x2: 10,400 pounds¹
• 6.5-foot box, 4x4: 10,400 pounds¹

SuperCrew

• 5.5-foot box, 4x2: 12,700 pounds¹
• 5.5-foot box, 4x4: 12,900 pounds¹
• 6.5-foot box, 4x4: 12,800 pounds¹

3.5-Liter EcoBoost V-6

The highest Ford F-150 towing capacity is achievable with this powerful, versatile engine. Making 500 pound-feet of torque, it offers you the following towing ratings:

Regular Cab

• 8-foot box, 4x2: 10,900 pounds¹
• 8-foot box, 4x2: 11,000 pounds¹

SuperCab

• 6.5-foot box, 4x2: 10,900 pounds¹
• 6.5-foot box, 4x4: 10,600 pounds¹

SuperCrew

• 5.5-foot box, 4x2: 12,800 pounds¹
• 5.5-foot box, 4x4: 13,100 pounds¹
• 6.5-foot box, 4x4: 13,500 pounds¹

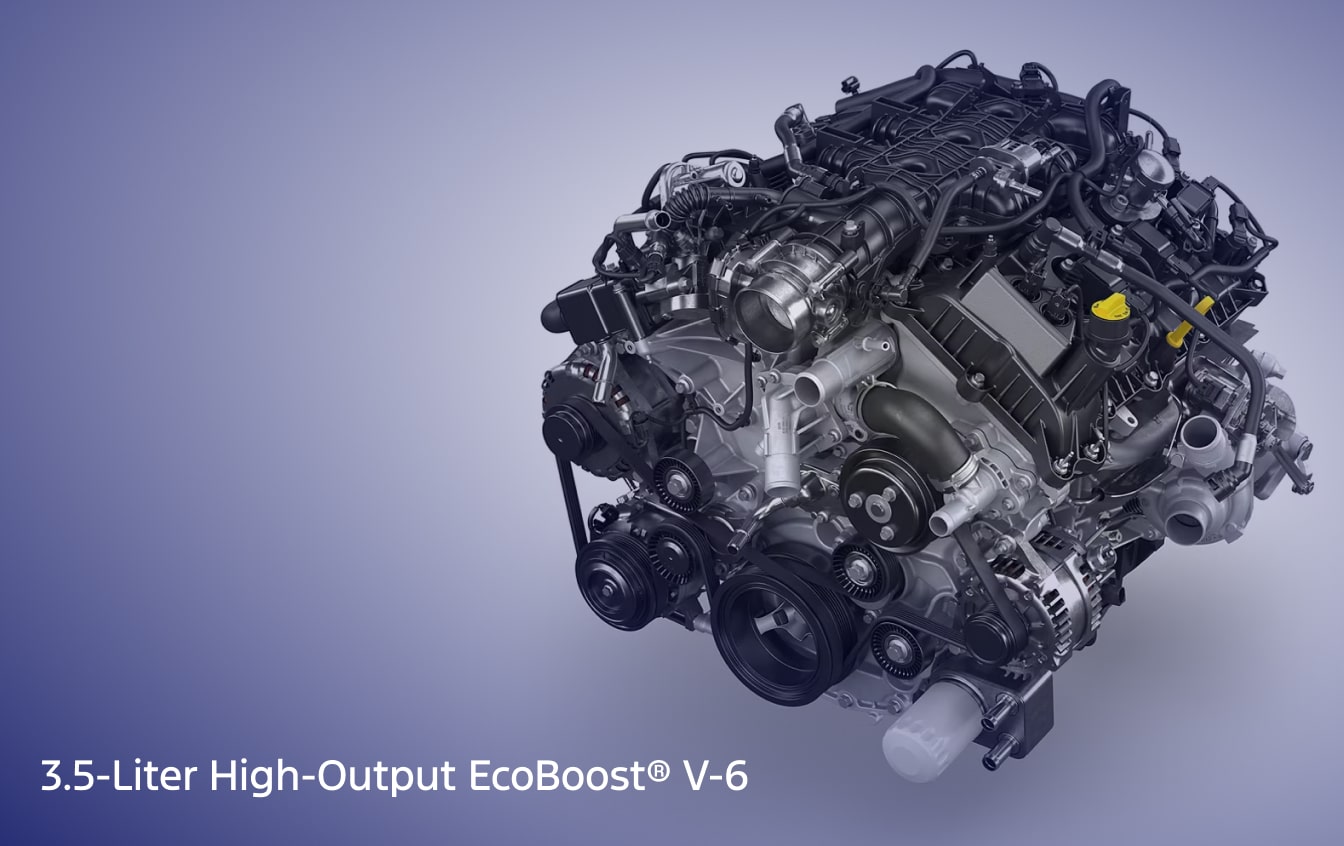

3.5-Liter High-Output EcoBoost V-6

Exclusive to the F-150 Raptor, this impressive powertrain throws down 510 pound-feet of torque. Its Ford F-150 towing capacity is:

SuperCrew

• 5.5-foot box, 4x4: 8,200 pounds¹

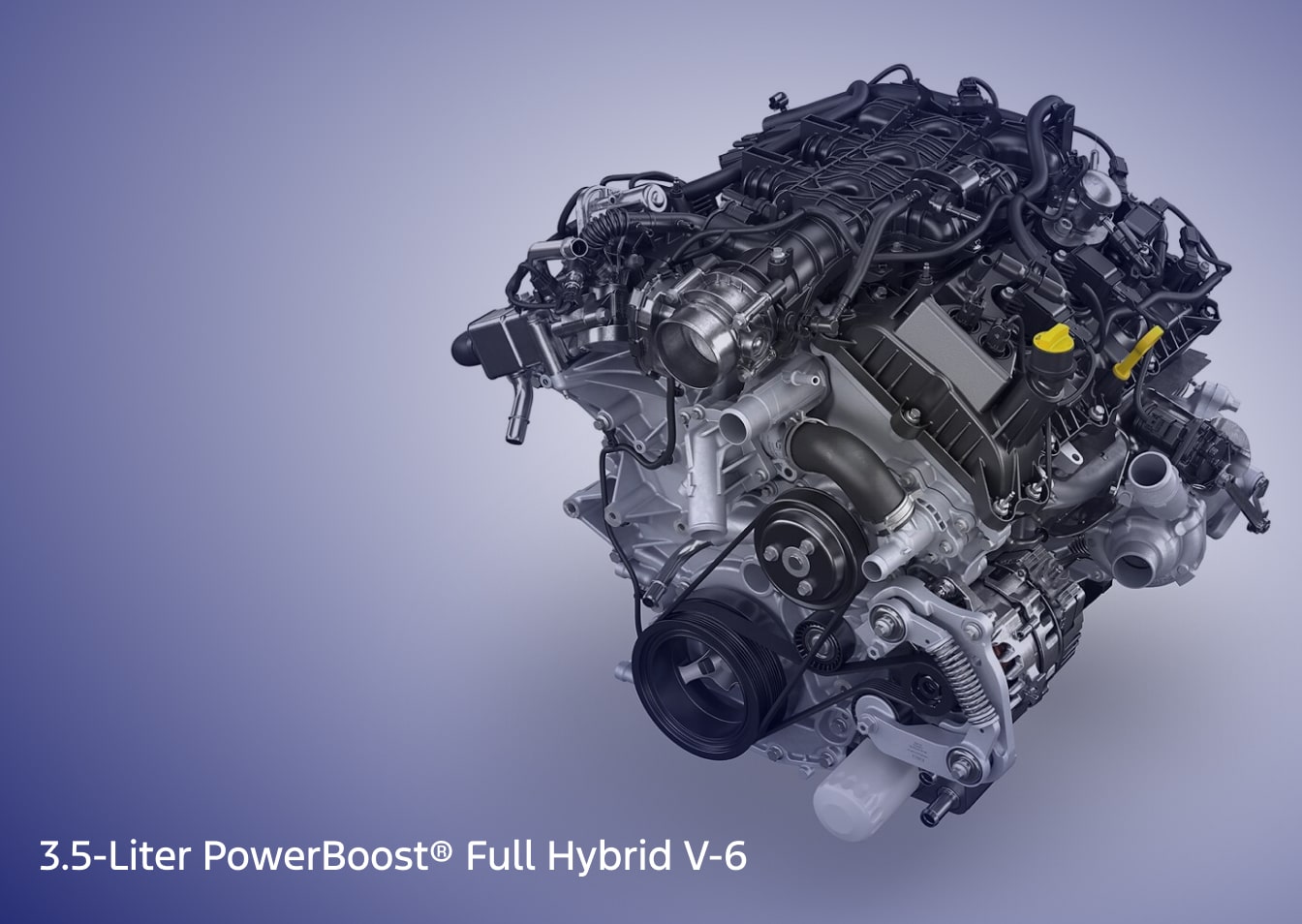

3.5-Liter PowerBoost Full Hybrid V-6

Improving the efficiency of a new Ford F-150, the PowerBoost engine makes 570 pound-feet of torque; it offers the following 2025 Ford F-150 towing capacity ratings:

SuperCrew

• 5.5-foot box, 4x4: 11,200 pounds¹
• 6.5-foot box, 4x4: 11,000 pounds¹

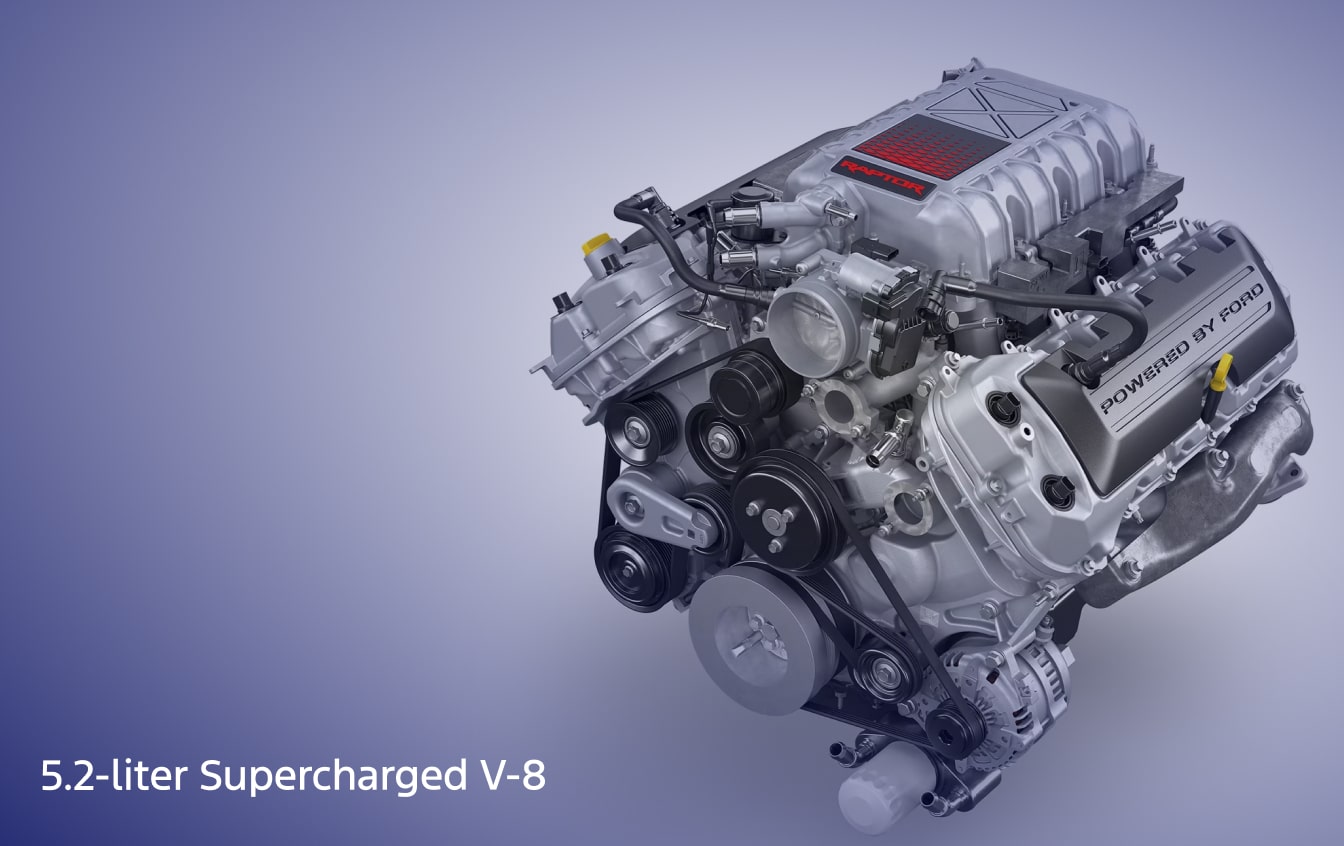

5.2-liter Supercharged V-8

Churning out 640 pound-feet of torque, this supercharged V-8 delivers the following towing capability for the Ford F-150 full-size truck:

SuperCrew

• 5.5-foot box, 4x4: 8,700 pounds¹

Which Configuration Has the Highest Ford F-150 Tow Capacity?

Now that you have reviewed the Ford F-150 towing capability of each configuration, you'll see that in order to hit the max 13,500-pound¹ rating, you'll need a 2025 Ford F-150 SuperCrew 4x4 equipped with a 6.5-foot truck bed and the available 3.5-liter EcoBoost V-6 engine. Keep in mind that for any of the truck configurations to pull a trailer or camper over 11,600 pounds,¹ it needs the Tow/Haul Package and the available Max Tow Axle, which will increase your overall Ford F-150 hitch rating. We'll discuss the details of the package later on.

2025 Ford F-150 Payload

When you're looking to carry heavy loads in the truck bed, a worthy payload capacity is crucial. The Ford F-150 max payload capacity is an impressive 2,440 pounds.² However, like the tow rating, this weight will depend on the engine, drivetrain, and bed size of your full-size truck.

To hit the max payload, you'll want to opt for the 2025 Ford F-150 Regular Cab 4x2 with an 8-foot bed and equipped with the 3.5-liter EcoBoost V-6 engine. Check out our Ford F-150 payload capacity chart to see the rating for each engine:

2025 Ford F-150 Tow/Haul Package

The 2025 Ford F-150 is a substantial truck designed for hard work. Its body-on-frame architecture, durable axles, and powerful engine options make it an ideal pickup for towing duties. But if you want to ensure your experience goes smoothly, especially if you plan to tow over 11,600 pounds,¹ you'll want to consider opting for the available Tow/Haul Package. This Ford F-150 tow package includes an enhanced rear axle ratio, an electronic locking rear differential, and a Trailer Brake Controller.

A Class IV Trailer Hitch receiver and a seven-wire harness and a four-/seven-pin connector are standard equipment for every 2025 Ford F-150, forming the foundation for the Tow/Haul Package. This type of hitch receiver is generally designed for towing significant loads up to 10,000 pounds.

We also recommend searching for an F-150 with the following towing technology, as they help put the Tow/Haul Package upgrades to better use:

• Smart Trailer Tow Connector: This convenient feature monitors your trailer for issues. It can let you know if your turn signals, reverse lights, or brake lights are experiencing problems via your productivity screen.
• Pro Trailer Backup Assist: Backing up your trailer or camper is a breeze with this technology. Turn the dash-mounted rotary dial, and your trailer will follow.
• Pro Trailer Hitch Assist: An innovative feature that effortlessly steers, accelerates, and brakes to guide your truck into position.

2025 F-150 Tow/Haul Package vs. F-150 Max Tow Axle

When considering which of the 2025 Ford F-150 packages to choose, there are some important differences to consider if you're unclear on which one would best suit your requirements.

As you can see above, the Tow/Haul Package unlocks even more capability on top of the standard hitch receiver; for the 2025 model, however, the Max Tow Axle upgrade is what you need to achieve the maximum 13,500-pound towing capacity. It enhances your trailer hitch with a 2-inch reinforced receiver rated at 14,000 pounds, instead of the standard 11,600 pounds. It allows you the most towing capability you can get out of this light-duty pickup before moving up to the Ford F-250 Super Duty.

Many of the tow ratings listed above require the Tow/Haul Package and the Max Tow Axle upgrade or both. To order all the 2025 Ford F-150 towing accessories you'll need for the job, give our Ford dealer a call today and set up a convenient installation at Tom Wood Ford.

Test-Drive Your Next 2025 Ford F-150 at Tom Wood Ford!

Now that you have a good idea of the Ford F-150 specs and towing capabilities, it's time to get behind the wheel of this robust full-size truck. Schedule your test drive today, and let us walk you through all the available trim levels, drivetrains, engine options, and cab styles.!

Frequently Asked Questions

What is the 2025 Ford F-150 towing capacity?

The Ford F-150 towing capacity is an impressive maximum of 13,500 pounds¹ but will depend on your chosen configuration. For example, a 2025 F-150 SuperCrew 4x4 with a 5.5-foot bed and equipped with the 2.7-liter EcoBoost V-6 engine will have a towing capacity of 8,000 pounds.¹ The max payload of 2,440 pounds² will also be determined by your configuration.

What is the best Ford F-150 for towing?

The best Ford F-150 for towing will have the 3.5-liter EcoBoost V-6 engine, a SuperCrew cab, a 6.5-foot box, and a 4x4 layout; it will offer a towing capacity of 13,500 pounds¹ (the highest-rated 2025 Ford F-150 towing capacity) while also having the largest cargo bed available for the SuperCrew cab. Trim levels will be a subjective matter.

Can a 2025 Ford F-150 really tow 10,000 pounds?

Many 2025 Ford F-150 trucks can tow over 10,000 pounds.¹ The 3.5-liter EcoBoost V-6, 5.0-liter Ti-VCT V-8, and 3.5-liter PowerBoost Full Hybrid V-6 can all achieve a tow rating of 10,000 pounds¹ or higher. More importantly, the 3.5-liter EcoBoost offers the highest Ford F-150 towing capacity: a maximum of 13,500 pounds.¹
